Heat Exchanger Unit

With the marketing concept of "integrity-based, cooperation-oriented", we are committed to providing customers with high-quality products and services.


Home > Product Center > HVAC And Water Supply Series > Heat exchanger unit > Heat Exchanger Unit

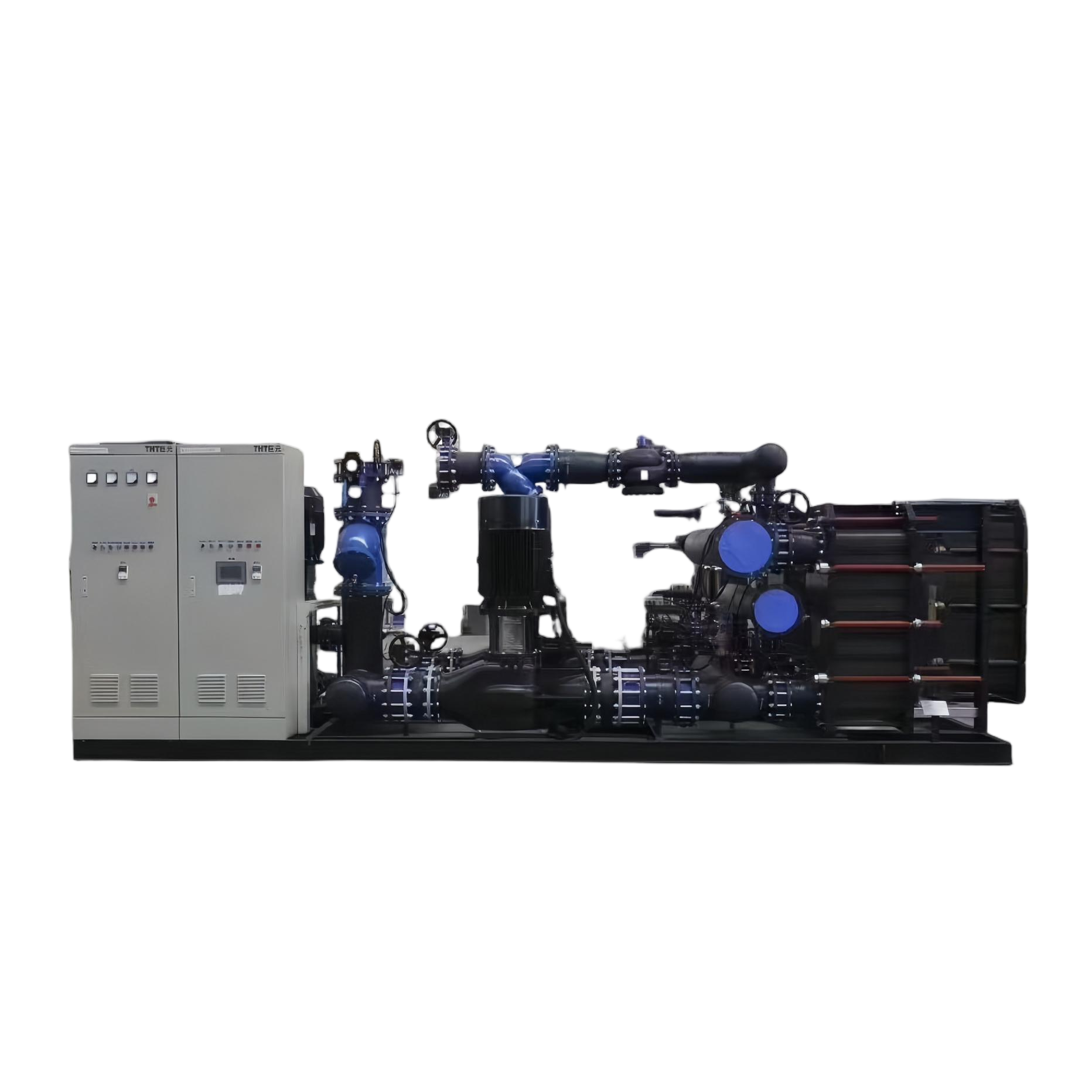

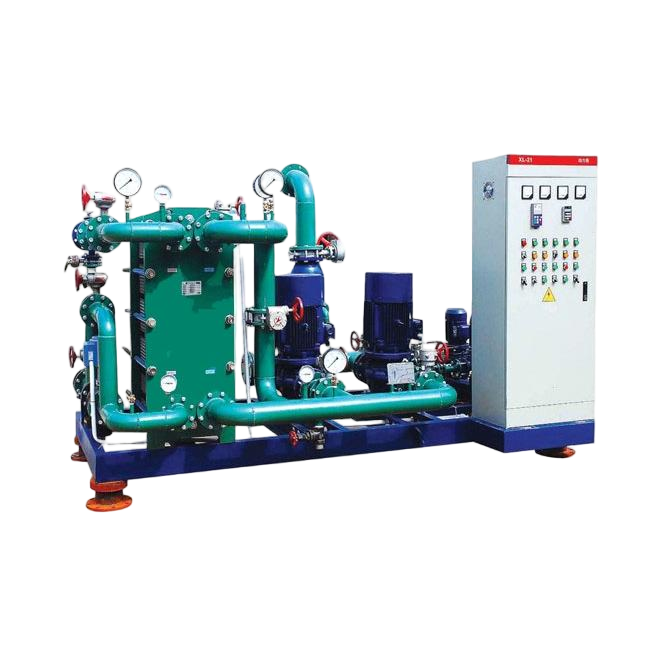

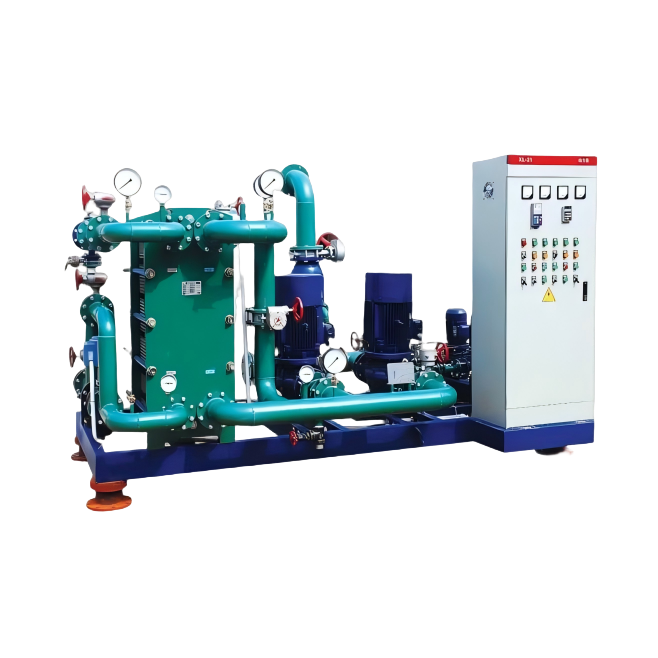

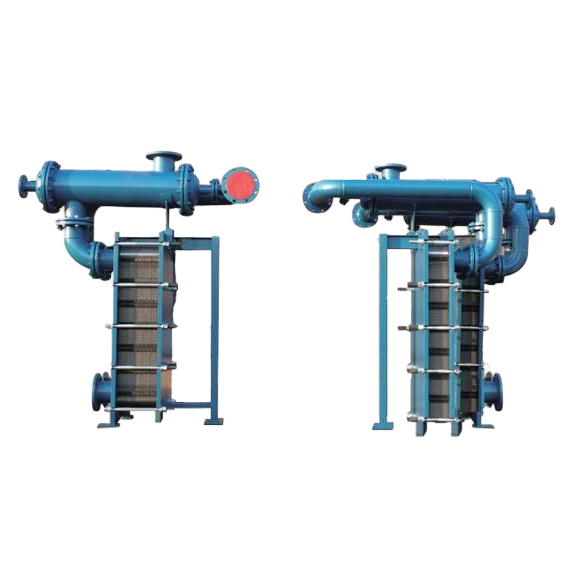

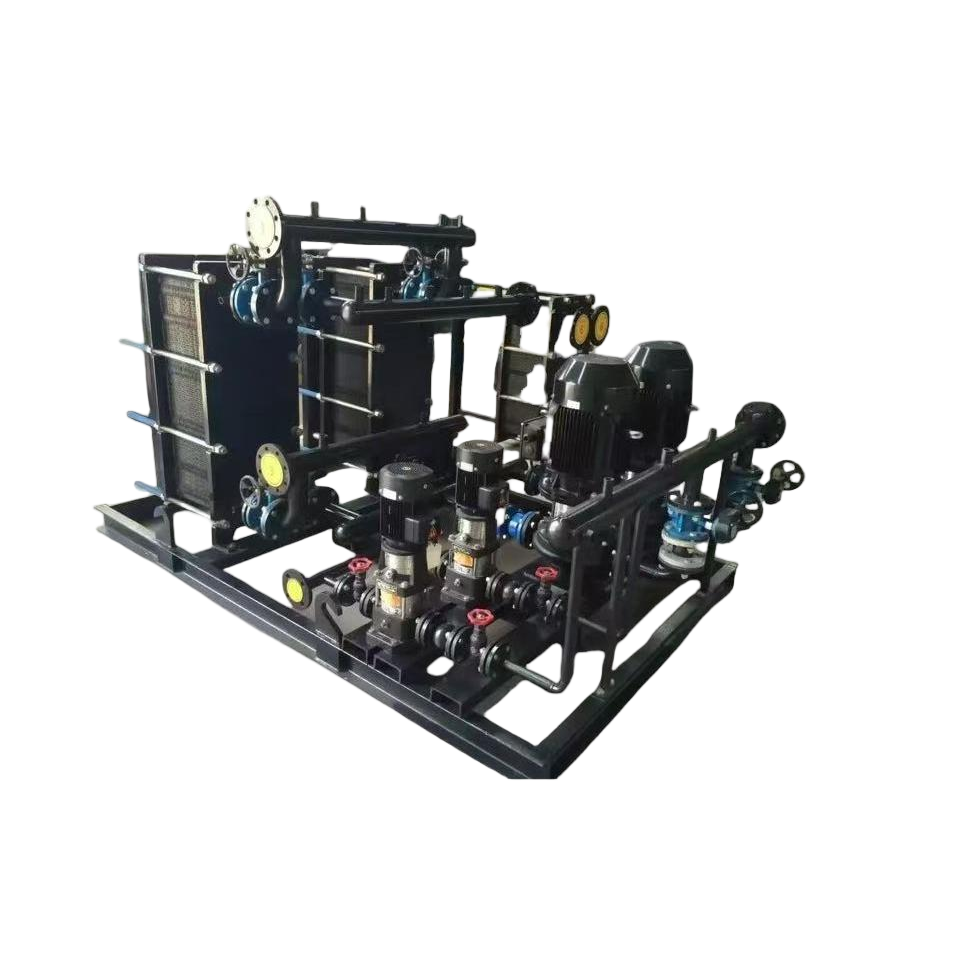

Heat Exchanger Unit

The heat exchange unit integrates the heat exchanger, water pump, and control system into one, and is used for heating and industrial hot water systems. It features energy efficiency, high performance, easy installation, and a high degree of automation, and supports customized configurations.

MESSAGE

PRODUCT DETAILS

Parameter Table of Steam-Water Domestic Water Heat Exchange Unit
Unit Model	heatt supply capacity MW	steam pressure MPa	Rated steam flow rate (t/h)	Water productio n capacity (t/h)	No.of single-pipe direct- supply shower units	No.of bathtubs@ 60℃ supply	inlet water temperature ℃	outlet water temperature ℃	circulating water pump				Length× Width × Height (m)
Unit Model	heatt supply capacity MW	steam pressure MPa	Rated steam flow rate (t/h)	Water productio n capacity (t/h)	No.of single-pipe direct- supply shower units	No.of bathtubs@ 60℃ supply	inlet water temperature ℃	outlet water temperature ℃	Flow rate (m³/h)	Head(m)	Number of units	Power of each unit ( kW)	Length× Width × Height (m)
LDBHZ/Q-R-0.35	0.35	0.1-0.4 saturated steam	0.5	5.5	27	33	5~10	35~60	4.4-8.3	33-30	2	2.2	2.71.21.4
LDBHZ/Q-R-0.7	0.7		1	10.9	55	67			8.8-15.3	33-30	2	3
LDBHZ/Q-R-1.05	1.05		1.5	16.4	82	100			16.4-30.4	30-24.6	2	4
LDBHZ/Q-R-1.4	1.4		2	21.8	109	133			16.4-30.4	30-24.6	2	4	3.61.61.7
LDBHZ/Q-R-1.75	1.75		2.6	27.3	136	166			17.5-32.5	34.4-27.5	2	4
LDBHZ/Q-R-2.1	2.1		3.1	32.7	164	200			32.7-61	30.6-25	2	7.5
LDBHZ/Q-R-2.8	2.8		4.1	43.6	218	266			32.7-61	30.6-25	2	7.5	4.01.62.0
LDBHZ/Q-R-3.5	3.5		5.4	55	273	333			35-65	35-28	2	7.5
LDBHZ/Q-R-4.2	4.2		6.1	65	327	399			35-65	35-28	2	7.5
LDBHZ/Q-R-4.9	4.9		7.2	76	382	466			35-65	35-28	2	7.5
LDBHZ/Q-R-5.6	5.6		8.2	87	436	532			65.4-121.6	32-21	2	11
LDBHZ/Q-R-6.3	6.3		9.2	98	491	599			65.4-121.6	32-21	2	11
LDBHZ/Q-R-7.0	7.0		10	109	545	665			65.4-121.6	32-21	2	11
LDBHZ/Q-R-8.4	8.4		12	131	655	799			90-180	31.5-24.5	2	18.5
LDBHZ/Q-R-9.8	9.8		14	153	764	932			90-180	31.5-24.5	2	18.5
LDBHZ/Q-R-11.2	11.2		16	175	873	1065			96-192	36-28	2	22
LDBHZ/Q-R-12.6	12.6		18	196	982	1198			112-224	31-24	2	22
LDBHZ/Q-R-14.0	14.0		20	218	1091	1331			120-240	35-28	2	30
Note:It can be customized according to the user's needs.

Parameter Table of Water-Water Domestic Water Heat Exchange Unit
Unit Model	heat supply capacity MW	Water productio n amount (t/h)	No.of single- pipe direct- supply shower units	No.of bathtubs @60℃ supply	inlet water temperature ℃	outlet water temperature ℃	heat water			circulating water pump				Length× Width× Height(m)
Unit Model	heat supply capacity MW	Water productio n amount (t/h)	No.of single- pipe direct- supply shower units	No.of bathtubs @60℃ supply	inlet water temperature ℃	outlet water temperature ℃	Import Temperature (℃)	Return Water Temperature (℃)	Water flow rate (t/h)	Flow rate (m³/h )	Head(m)	Number of units	Power of each unit (kW)	Length× Width× Height(m)
LDBHZ/Q-R-0.35	0.35	5.5	27	33	5~10	35~60	95	70	12	4.4-8.3	33-30	2	2.2	2.71.21.4
LDBHZ/Q-R-0.7	0.7	10.9	55	67					24	8.8-15.3	33-30	2	3
LDBHZ/Q-R-1.05	1.05	16.4	82	100					36	16.4-30.4	30-24.6	2	4
LDBHZ/Q-R-1.4	1.4	21.8	109	133					48	16.4-30.4	30-24.6	2	4	3.61.61.7
LDBHZ/Q-R-1.75	1.75	27.3	136	166					60	17.5-32.5	34.4-27.5	2	4
LDBHZ/Q-R-2.1	2.1	32.7	164	200					72	32.7-61	30.6-25	2	7.5
LDBHZ/Q-R-2.8	2.8	43.6	218	266					96	32.7-61	30.6-25	2	7.5	4.01.62.0
LDBHZ/Q-R-3.5	3.5	55	273	333					120	35-65	35-28	2	7.5
LDBHZ/Q-R-4.2	4.2	65	327	399					144	35-65	35-28	2	7.5
LDBHZ/Q-R-4.9	4.9	76	382	466					168	35-65	35-28	2	7.5
LDBHZ/Q-R-5.6	5.6	87	436	532					192	65.4-121.6	32-21	2	11
LDBHZ/Q-R-6.3	6.3	98	491	599					216	65.4-121.6	32-21	2	11
LDBHZ/Q-R-7.0	7.0	109	545	665					240	65.4-121.6	32-21	2	11
LDBHZ/Q-R-8.4	8.4	131	655	799					288	90-180	31.5-24.5	2	18.5
LDBHZ/Q-R-9.8	9.8	153	764	932					336	90-180	31.5-24.5	2	18.5
LDBHZ/Q-R-11.2	11.2	175	873	1065					384	96-192	36-28	2	22
LDBHZ/Q-R-12.6	12.6	196	982	1198					432	112-224	31-24	2	22
LDBHZ/Q-R-14.0	14.0	218	1091	1331					180	120-240	35-28	2	30
Note:It can be customized according to the user's needs.

Parameter Table of Steam-Water Heating Heat Exchange Unit
Unit Model	heat supply capacity MW	Heating area (10000m)	hot water production capacity t/h	rated steam flow rate t/h	circulating water pump				feed water pump				Length× Width× Height(m)
Unit Model	heat supply capacity MW	Heating area (10000m)	hot water production capacity t/h	rated steam flow rate t/h	Flow rate(m³/h)	Head(m)	Number of units	Power of each unit(kW)	Flow rate (m³/h)	Head(m)	Number of units	Power of each unit ( kW)	Length× Width× Height(m)
LDBHZ/Q-N-0.35	0.35	0.5	15	0.52	14.1-28.2	30.8-36.4	2	4	1.8-3.3	33-30	1	0.75	2.80.91.6
LDBHZ/Q-N-0.7	0.7	1	30	1.04	30.3-56.3	26-21	2	5.5	1.8-3.3	33-30	1	0.75
LDBHZ/Q-N-1.05	1.05	1.5	45	1.56	32.7-61	30.6-25	2	7.5	2.8-5.2	33-30	1	1.5
LDBHZ/Q-N-1.4	1.4	2	60	2.08	35-60	35-28	2	7.5	2.8-5.2	33-30	1	1.5	3.91.61.9
LDBHZ/Q-N-1.75	1.75	2.5	75	2.6	65.4-121.6	32-21	2	11	2.8-5.2	33-30	2	1.5
LDBHZ/Q-N-2.1	2.1	3	90	3.12	65.4-121.6	32-21	2	11	2.8-5.2	33-30	2	1.5
LDBHZ/Q-N-2.8	2.8	4	120	4.17	90-180	31.5-24.5	2	18.5	4.4-8.3	33-30	2	2.2	3.91.62.1
LDBHZ/Q-N-3.5	3.5	5	150	5.21	96-192	36-28	2	22	4.4-8.3	33-30	2	2.2
LDBHZ/Q-N-4.2	4.2	6	180	6.25	120-240	36-28	2	30	8.8-16.3	33-30	2	3
LDBHZ/Q-N-4.9	4.9	7	210	7.29	140-260	33.8-28	2	30	8.8-16.3	33-30	2	3
LDBHZ/Q-N-5.6	5.6	8	240	8.33	140-260	33.8-28	2	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/Q-N-6.3	6.3	9	270	9.37	96-192	36-28	2	22	16.4-30.5	40-34.5	2	5.5	6.42.32.8
LDBHZ/Q-N-7.0	7.0	10	300	10.4	96-192	36-28	3	22	16.4-30.5	40-34.5	2	5.5
LDBHZ/Q-N-8.4	8.4	12	360	12.5	120-240	36-28	3	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/Q-N-9.8	9.8	14	420	14.6	140-260	33.8-28	3	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/Q-N-11.2	11.2	16	480	16.7	140-260	33.8-28	3	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/Q-N-12.6	12.6	18	540	18.7	224-416	34.9-25	3	45	16.4-30.5	40-34.5	2	5.5
LDBHZ/Q-N-14.0	14.0	20	600	20.8	262-486	31.5-23	3	45	30.5-56.5	40.6-33.5	2	7.5
LDBHZ/Q-N-17.5	17.5	25	750	26	365-600	31.5-23	3	55	30.5-56.5	40.6-33.5	2	7.5
LDBHZ/Q-N-21.0	21.0	30	900	31.2	325-530	41.2-34.2	3	75	30.5-56.5	40.6-33.5	2	7.5
Note:It can be customized according to the user's needs.

Parameter Table of Water-Water Heating Heat Exchange Unit
Unit Model	heat supply capacity MW	Heating area (10000m)	hot water production capacity t/h	rated steam flow rate t/h	circulating water pump				feed water pump				Length× Width× Height(m)
Unit Model	heat supply capacity MW	Heating area (10000m)	hot water production capacity t/h	rated steam flow rate t/h	Flow rate(m³/h)	Head(m)	Number of units	Power of each unit(kW)	Flow rate (m³/h)	Head(m)	Number of units	Power of each unit (kW)	Length× Width× Height(m)
LDBHZ/S-N-0.35	0.35	0.5	15	8.57	14.1-28.2	30.8-36.4	2	4	1.8-3.3	33-30	1	0.75	2.80.91.6
LDBHZ/S-N-0.7	0.7	1	30	17.2	30.3-56.3	26-21	2	5.5	1.8-3.3	33-30	1	0.75
LDBHZ/S-N-1.05	1.05	1.5	45	25.7	32.7-61	30.6-25	2	7.5	2.8-5.2	33-30	1	1.5
LDBHZ/S-N-1.4	1.4	2	60	34.3	35-60	35-28	2	7.5	2.8-5.2	33-30	1	1.5	3.91.61.9
LDBHZ/S-N-1.75	1.75	2.5	75	42.9	65.4-121.6	32-21	2	11	2.8-5.2	33-30	2	1.5
LDBHZ/S-N-2.1	2.1	3	90	51.4	65.4-121.6	32-21	2	11	2.8-5.2	33-30	2	1.5
LDBHZ/S-N-2.8	2.8	4	120	68.6	90-180	31.5-24.5	2	18.5	4.4-8.3	33-30	2	2.2	3.91.62.1
LDBHZ/S-N-3.5	3.5	5	150	85.7	96-192	36-28	2	22	4.4-8.3	33-30	2	2.2
LDBHZ/S-N-4.2	4.2	6	180	103	120-240	36-28	2	30	8.8-16.3	33-30	2	3
LDBHZ/S-N-4.9	4.9	7	210	120	140-260	33.8-28	2	30	8.8-16.3	33-30	2	3
LDBHZ/S-N-5.6	5.6	8	240	137	140-260	33.8-28	2	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/S-N-6.3	6.3	9	270	154	96-192	36-28	2	22	16.4-30.5	40-34.5	2	5.5	6.42.32.8
LDBHZ/S-N-7.0	7.0	10	300	171	96-192	36-28	3	22	16.4-30.5	40-34.5	2	5.5
LDBHZ/S-N-8.4	8.4	12	360	206	120-240	36-28	3	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/S-N-9.8	9.8	14	420	240	140-260	33.8-28	3	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/S-N-11.2	11.2	16	480	274	140-260	33.8-28	3	30	16.4-30.5	40-34.5	2	5.5
LDBHZ/S-N-12.6	12.6	18	540	309	224-416	34.9-25	3	45	16.4-30.5	40-34.5	2	5.5
LDBHZ/S-N-14.0	14.0	20	600	343	262-486	31.5-23	3	45	30.5-56.5	40.6-33.5	2	7.5
LDBHZ/S-N-17.5	17.5	25	750	429	365-600	31.5-23	3	55	30.5-56.5	40.6-33.5	2	7.5
LDBHZ/S-N-21.0	21.0	30	900	514	325-530	41.2-34.2	3	75	30.5-56.5	40.6-33.5	2	7.5
Note:It can be customized according to the user's needs.
